• Conversion of existing open walled exercise yard and toilet block into single storey flat roof accommodation including family, Gun, changing and Plant rooms
• Removal of existing oak framed balcony and relocation of existing gas cylinder cupboard
• New glazed link to connect the conversion with the existing house, including full-height narrow profile glazing, balcony over accessed from existing balcony door, monopitch metal roofing and clerestory windows
• External works to include re-configuration of steps and making good of patio area etc.
Finished Project
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/dd40b41d-1dd9-4b43-8583-04efb676b7eb_rw_3840.jpg?h=fd18bc4bdb9f9de47db86b1643d6be54)
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/b30688d0-7ae9-4fbd-99f2-ae14b619812d_rw_3840.jpg?h=997195516007cf6a1d8db7f1202cbb33)
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/80731113-1ec7-4e18-bf2f-5f44f281718d_rw_3840.jpg?h=e635380f222f99fbfe0f90087fcca361)
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/6ef1fd04-7936-4318-8fc1-5923e51977e9_rw_3840.jpg?h=f2aa79c7f73c5846360ec2d5651c675b)

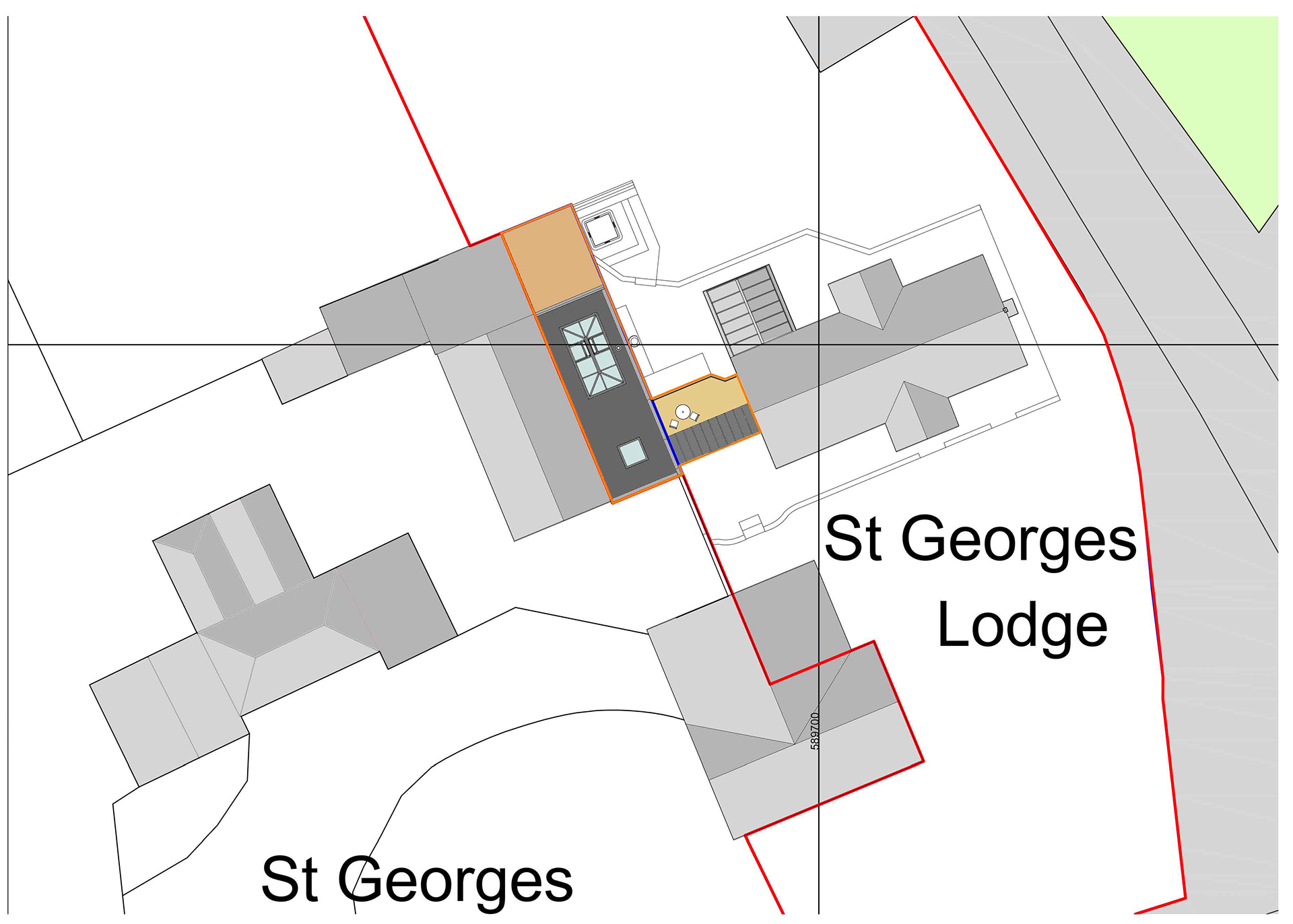

Site Plan Proposed
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/29937058-2ebf-4575-af21-3919b4744441_rw_1920.png?h=846f0712d1f7ab8e23a958298fa5c214)

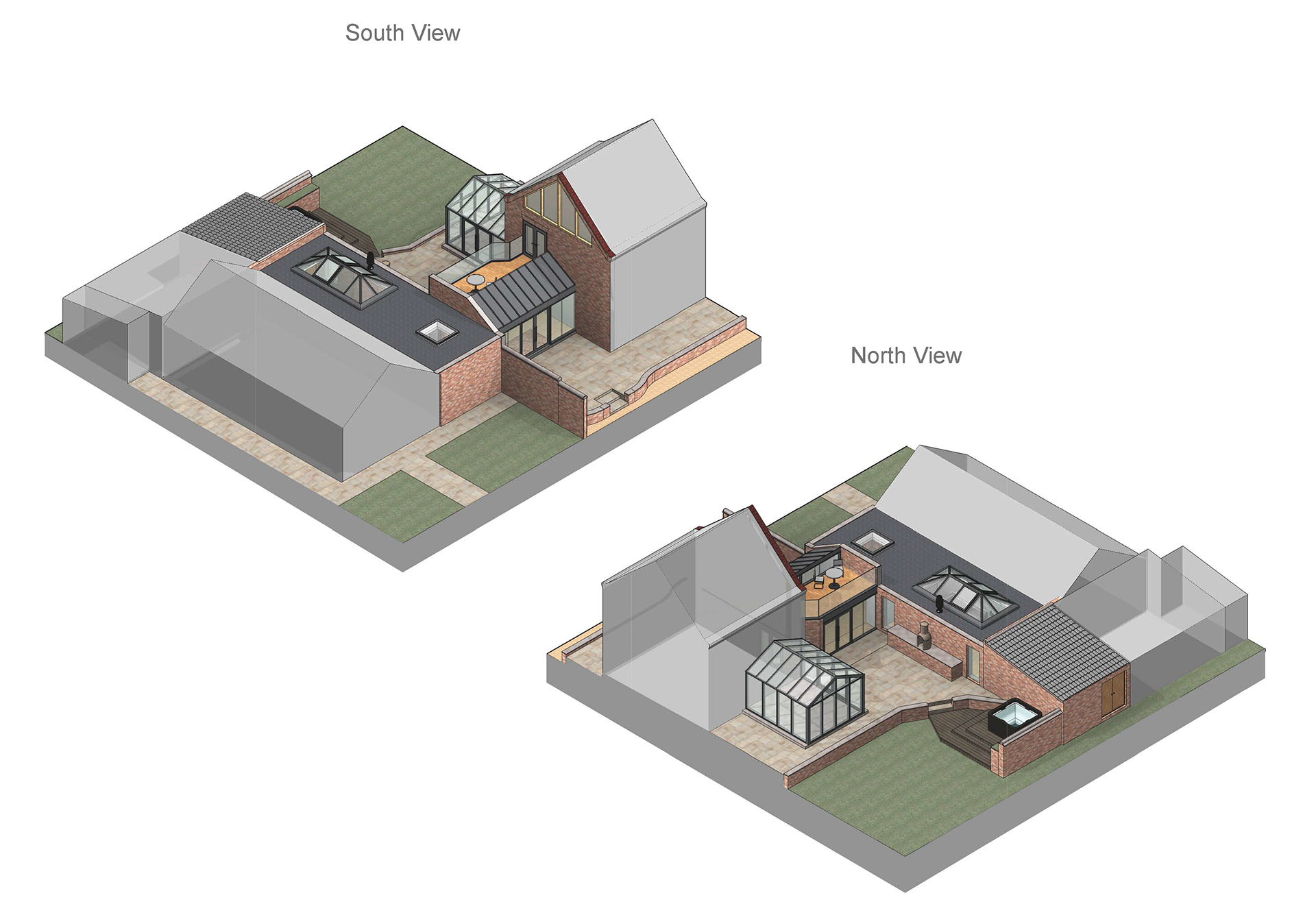

Isometrics Proposed
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/c5ef6847-2577-473d-9760-396aece5da4c_rw_1920.png?h=93993c0374e2714e8f609b93133a631e)
Context Renders
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/eee55547-111e-4ba0-9af0-cb510086bbca_rw_1920.png?h=4e524d01f03fbc7f1a65d4929dbeda78)

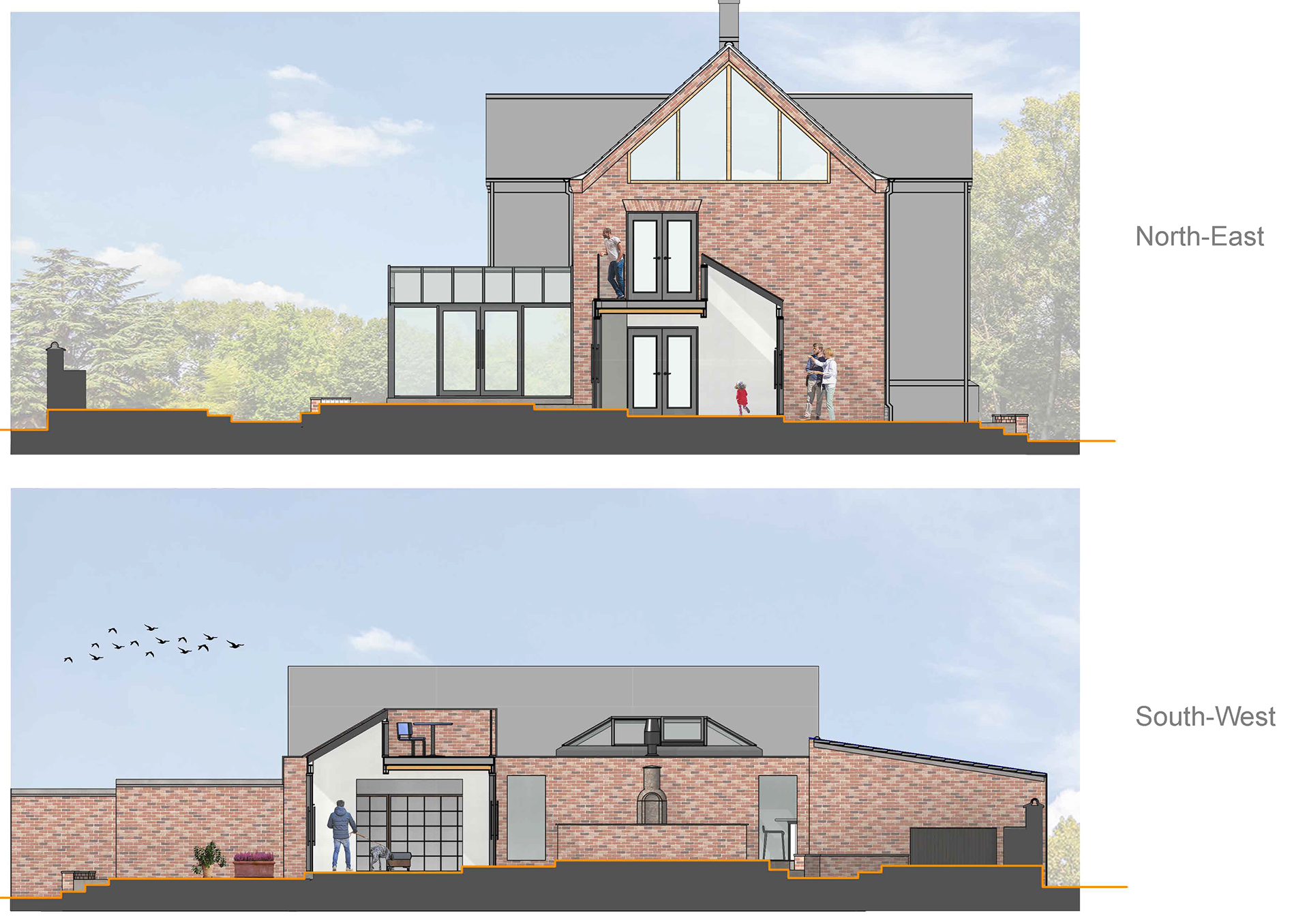

Proposed Elevations
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/2ea2a660-5077-4b50-8f61-c003e74b6c25_rw_1920.png?h=6e6579c0176c8b3aad9ebee6a5c62a02)
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/2492d117-0884-4481-9773-2042aa80b35d_rw_1920.png?h=0f7ab398f111914e685c7e0f6867ad6e)

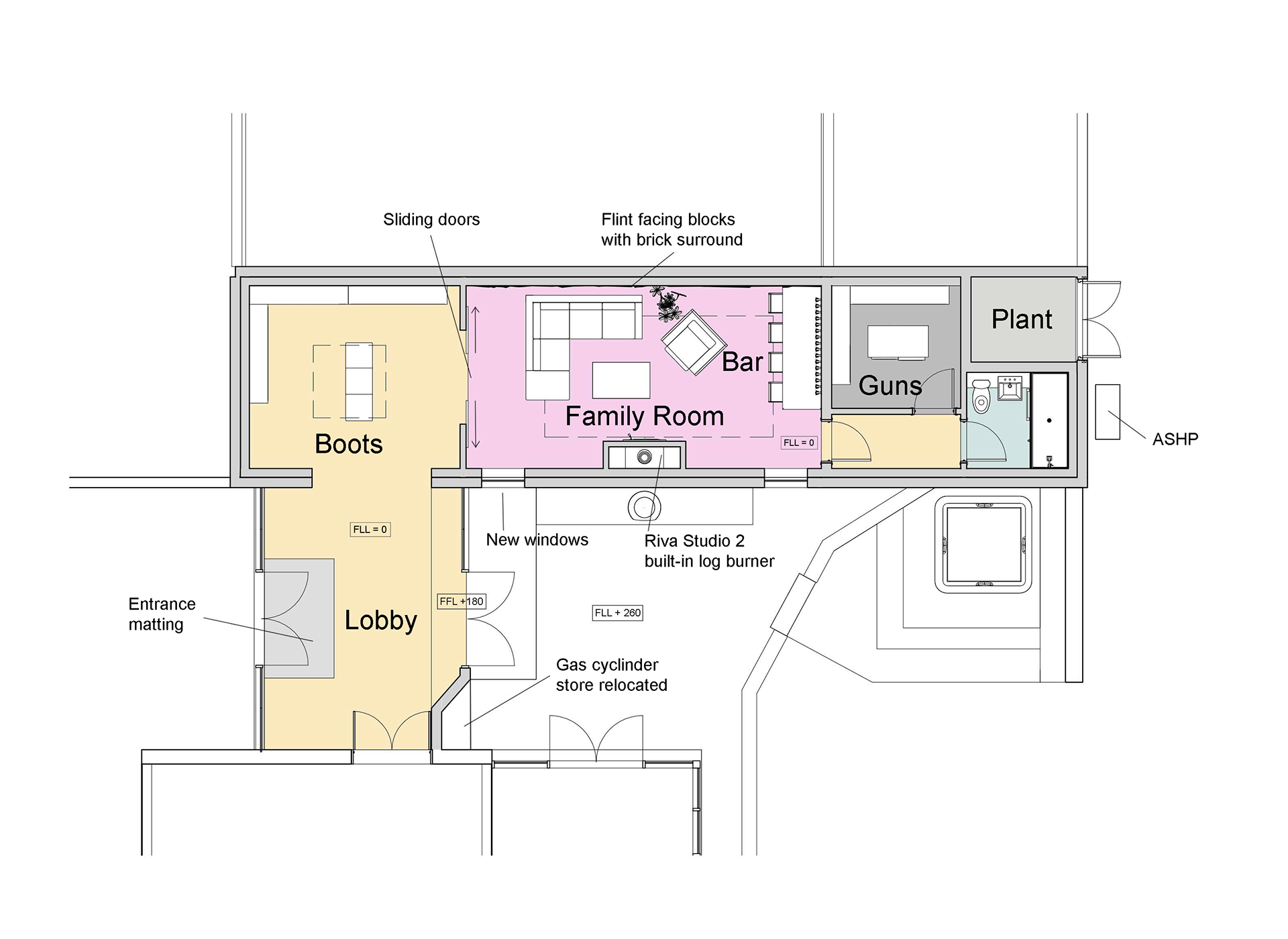

Proposed Plans
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/a1af730f-66af-40d7-8d3b-dca1f2acfceb_rw_1920.png?h=13c2ab858920307af6586bc19343eb5a)
![](https://cdn.myportfolio.com/b6e0fa34-7178-4795-977d-0306909a053b/486a5efe-9295-418b-953d-befa4163327d_rw_1920.png?h=d093a1b604b8a3888a9a4cc58484c815)
